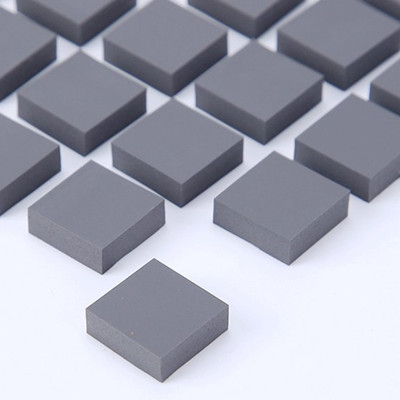

Thermally Conductive Electrical Insulation Sheet Silicone Practical Anti Insulation

Product Categories

Shenzhen Aochuan Technology Co., Ltd

Contact Now

Brand Name : AOK

Model Number : TC900S

Certification : RoHS, Reach, UL

Place of Origin : China

MOQ : 1000 pcs

Payment Terms : T/T

Delivery Time : 13-15 working days

Packaging Details : 400 mm x 200 mm

Product Name : Grey Silicone 1.6w Electrical Insulation Sheet With Good insulation

Composition : Glass fiber + thermal conductive silicone

Color : Grey

Thermal conductivity : 1.6 W/m.K

Tensile Strength : ＞20 kn/m

Breakdown Voltage : ≥5.5 kv/mm

Contact Now

Grey Silicone 1.6W/m.K Electrical Insulation Sheet With Good Insulation

Typical Properties
Properties	Attribute	Test Method
Color	Pink	Visual
Material	Glass fiber + thermal conductive silicone	/
Thickness(mm)	0.23	/
Density (g/cc)	2.5	ASTM D792
Hardness(Shore A)	85	ASTM D2240
Tearing strength(KN/m)	＞20	ASTM D624
Weight Damnify(%)	≤1.0	/
Usage Temperature (°C)	- 40 to 150	/
Flammability	V-0	UL 94
Shelf Life(month)	12	Temperature <40℃ avoid extrusion and exposure to the sun
Electrical
Breakdown Voltage (kV)	> 5.5	ASTM D149
Volume Resistivity (Ω.cm)	10¹⁴	ASTM D257
Thermal
Thermal Conductivity (W/m-K)	1.6	ISO22007-2
Thermal Impedance (℃-in2/W, 50psi)	＜0.61	ASTM D5470

Features
High performance film
Excellent electrical insulation properties
Flammability UL 94 V-0
Low thermal resistance

Typical Applications
Power Modules
Heat generation power module
Automotive Electronic Heat Modules
Motor Control
Power Semiconductor

Thermally Conductive Electrical Insulation Sheet Silicone Practical Anti Insulation
